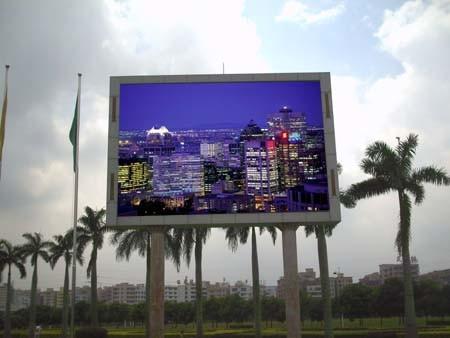

P10 1R1G1B Advertising Led Screens Flat Led Video Panels High Definition
Technical Parameters:
| Items | P10 outdoor SMD 3-in-1 full color led display |
| Pitch size | 10mm |
| Module size | 320mm*160mm |
| Module pixel(dots) | 32*16 |
| Pixel configuration | 1Red,1Green,1Blue |
| LED chip | Epistar |
| Color scale | 65536degree/16777216colors |
| Pixel density | 43222pixels/square meter |
| View angle(H/V) | 120/120degree |
| Brightness | ≥6000cd/sqm |
| Brightness adjustment | 64 level automatic or manual |
| View distance | 3--300m |
| Power consumption | 50-1100W/sqm |
| Net weight | 40kg/square meter |
| Operating temperature | —25°C~+60°C |
| Operating humidity | 10%—95%RH |
| Life time | ≥100,000hours |
| Out of control dot | ≤3/10,000 |
| Whole Display Flatness | ≤1mm Juncture |
| Exchange frame speed | >150frames per second |
| Refresh frame frequency | 700Hz |
| Control distance | 120m (without repeater), single mode fiber:20km,
multi mode fiber: 500m |
| Power | 110V/220V±15% 50~60Hz |
| Operating system | Windows98/Me/2000/Xp/window 7 |
| Drive mode | constant current driving, 1/13 scan |
| Display mode | VGA640X480—VGA1600X1024 |
| Maintenance way | Rear access |
| Accepting signal | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
LED P10 Advertising Billboards
1. The first level LED chip from Taiwan Epistar
2. With pure golden wire connection in LED
3. Grand A row material for module frame and mask
4 layers PCB and copper plating thickness > 18mil
5. Stainless steel screws when assembly
6. Disassembly and assembly are quick and easy
7. 3 to 5 years warranty
8 .Energy-saving 60% : driving with low frequency current, heat-dissipated roller fans with automatic temperature-controlling device.
9 .Life time >11 years;
Cabinet: Die casting aluminum and waterproof iron cabinet are available
1.Classical design and natural technic,reliable quality and great performance.
2.Seamless connecting tech.,screen flatness error <0.1mm.
3.Patented mask,eliminating the dark spots,improving consistency and viewing angle.
4.High contrast,ideal gray scale,presenting the most real pictures.
5.Supporting brightness and color correcting of the whole screen.
6.Ideal load of power and parameter setting,make screen under the best working condition,moreover,furthest slow down brightness and color reduction.
♦ Our advantages
Professional Manufacturer of led display
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case,you are the boss.
6. Your reply will be replied within 24 hours.
7. Fast delivery: Usually 6-8 working days
8. Excellent R&D team,factory Price and assure you quality goods.
Product Features
1. Outdoor LED display is of high brightness, with a general brightness of 5500cd and a maximum brightness of more than 10000cd. Even under the irradiation of strong light, it can be clearly seen with good display effect.
2. As a kind of advertising media, outdoor LED display screen has a variety of forms of advertising, which is more ornamental, wider and more attractive than traditional advertising. 3. Outdoor LED display advertising content update speed is fast, the administrator can change the display advertising content at any time according to the actual situation, the operation is relatively simple. 4. Outdoor LED display has good waterproof performance, strong uv resistance, protection grade above IP65, and can deal with all kinds of bad weather.
