Brand Name : SCXK
Model Number : P3.91
Certification : CE/ROHS/FCC/ISO/CB
Place of Origin : Shenzhen China
MOQ : 5 sqm
Price : 527$-721$
Payment Terms : T/T, Western Union
Supply Ability : 5000 sqm per month
Delivery Time : 7-15 working days after receive your payment
Packaging Details : flight case, wooden case, carton, it is up to you.
Pixel Pitch : 3.91mm
Cabinet : die-casting aluminum/iron
Frame Frequency : >=60HZ
Transmiiting distance : Internet cable <100m
viewing angle : H:160 V:140
Pixel Density : 65410
Control System : LSN/NoVa
Module Size : 250*250
LED arrangement : RGB 3 in 1
Cabinet Size(H)X(V) : 500*1000mm
Outdoor Full Color Waterproof P3.91 Electronic LED Rental Screen
Our Advantages of P3.91 rental screen
1. Easy installation,regular items in Stocks
2. Offering free design drawing as requested.
3. Remote controlling and adjusting are available.
4. Wooden case or flight case,you are the boss.
5. Your reply will be replied within 24 hours.
6. Fast delivery: Usually 7-10 working days
7. Excellent R&D team,factory Price and assure you quality goods.
P3.91 Rental Screen Module Parameter:
Pixel pitch | 3.91mm |
Pixel configuration | 1R1G1B |
LED type | 3-in-1 SMD 2121 |
Module size | 250x250mm |
Module weight | 0.35kg |
Module resolution | 64x64dots |
Module quantity per cabinet | 8pcs |
Cabinet Parameter:
Cabinet size | 500x1000mm |
Cabinet material | die-casting aluminum |
Cabinet weight | 12.5kg |
Cabinet resolution | 128x256 dots |
Ingress protection | Front/Rear IP65/IP54 |
Whole Screen Parameter
Pixel density | 65410dots/m² |
Brightness | ≥5000 cd/m² |
Viewing angle | H≥120° V≥120° |
Min.viewing distance | 4m |
Max.power consumption | 1000W/m² |
Avg.power consumption | 350 W/m² |
Working voltage | 110~220VAC±15% |
Interface | HUB75 |
Colors | 16.7millon colors |
Gray level | 14-16bits |
Frame frequency | ≥1000frames/s |
Refresh rate | ≥1920Hz |
MTBF | ≥50000 hours |
Lifespan | ≥100000 hours |
Operating temperature | -10℃ ~ +55℃ |
Storage temperature | -20℃ ~ +60℃ |
Control System Parameter:
Video signal (with video processor) | AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP |
Color temperature | Adjustable by software |
Brightness level | 256 levels, automatic adjustment by software |
Control way | Computer, video-synchronous, real-time, off-line, internet etc. |

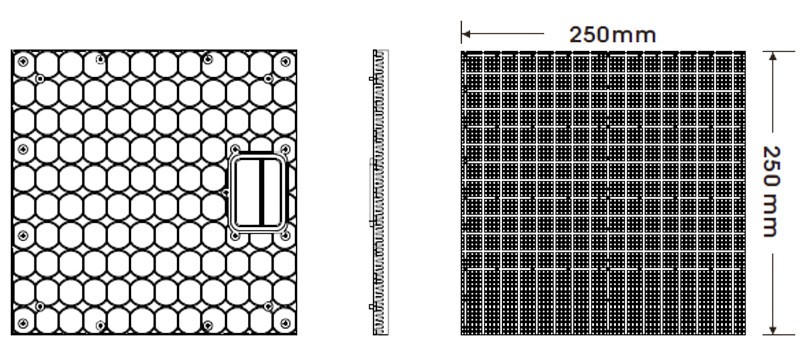

P4.81 LED Module Dimension
TR4.81 LED Cabinet Dimension
TR4.81 LED Screen Assembly
General Equipment For LED Display:
1. Video processor with multiple signal channel, satisfying the switch of different perspectives from live broadcast, advertising image and on-scene interview;
2. Splicer a kind of high and new equipment dividing a complete image into several blocks to achieve a large dynamic screen with multiple ordinary video units;
3. DVI distributor used for multiple digital video output with one-way digital video input and multi-channel video output function, to display images of the same DVI signal source with multiple digital display terminal in multimedia application system.
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
![]() |
Outdoor Full Color Waterproof P3.91 Electronic LED Rental Screen For Event Stage Background Images |
