HD Indoor panel P4 SMD2121 512x512mm die casting aluminum cabinet rental full color led display screen for led video wal

Product Categories
Shenzhen ShiXin Display Technology Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

HD Indoor panel P4 SMD2121 512x512mm die casting aluminum cabinet rental full color led display screen for led video wal

Brand Name : SCXK

Model Number : smd -p4

Certification : CB/CE/ROHS/FCC/ISO/UL

Place of Origin : CHINA

MOQ : 15 sqm

Price : negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5600 sqm month

Delivery Time : 7-10 working days

Packaging Details : wooden case，flight case，it is up to you.

Application : play videos and images

Color : full color

Panel Size : 512mmx512mm

Pixel Pitch : 4mm

Screen Dimension : Customized

Module size : 256*128mm

Refresh rate : 3840Hz

Pixel pitch : 4 Mm

Power Supply : Meanwell

Warranty : 3 Years

Contact Now

SCX LED Fast installation die-casting aluminum 4mm pixel pitch stage rental LED video wall indoor P4 LED Screen

Aluminum die-cast housing lease rental housing than the general advantages:

1. Light weight: per square box weighs only 24kg, single box weighs 8KG, single person can be a single hand, saving installation time;
2. Thin box: box with die casting aluminum, high strength, toughness, high precision, easy deformation, its thickness is only 80mm;
3. Screen Ping: surface flatness error less than 0.2mm, the effective elimination of mosaic;
4. Disassembly fast: the box is connected up and down with fast locking mechanism, pull the two handles 90 degrees to lock the two cabinet, 10s to complete a cabinet installation, high mounting accuracy. Enclosure and wiring connection fast and reliable, that is beautiful in appearance but also to achieve a real sense of the rapid disassembly;
5. Easy maintenance: modular design, installation and removal easy assembly Screen anywhere, simple to maintain
6. Tolerance: a new structure designed to meet the lifting of laminated requirements to meet indoor and outdoor requirements. Box single, compatible with a variety of pitch, indoor-outdoor module compatibility
7. High gray high refresh rate design,gradation 14 bit,refresh rate above 960Hz
8. Low excellent thermal design and cooling performance, without an external fan, air conditioning, low noise; light box weight, low installationcosts required; Low cabinet power consumption, saving operating costs.

Applications
Indoor LED display is widely used in lighting shows, concerts, performance stages, wedding, events, shopping malls, entertainment and sports venues, schools, government, trade fair, exhibition, press conference, meeting rooms, cinemas, airports, hotels, station, stadium and variety of public places.

♦ Product specification

indoor SMD P4
Lamp size 2121
Resolution/mm 4
Pixel configuration RGB 3 in 1
Pixel density/pixels/m² 62500/m²
Module resolution 64x32
Module size/mm 128x128
View distance ≥4m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >2500cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 14 bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:5km
Driving mode Constant driving current
Scanning mode 1/16
Frame rate 60Hz
Refresh frequency >1200Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss
Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
Maximum power:/㎡ <1100W
Average power:/㎡ <280W
Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)
Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)
Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%

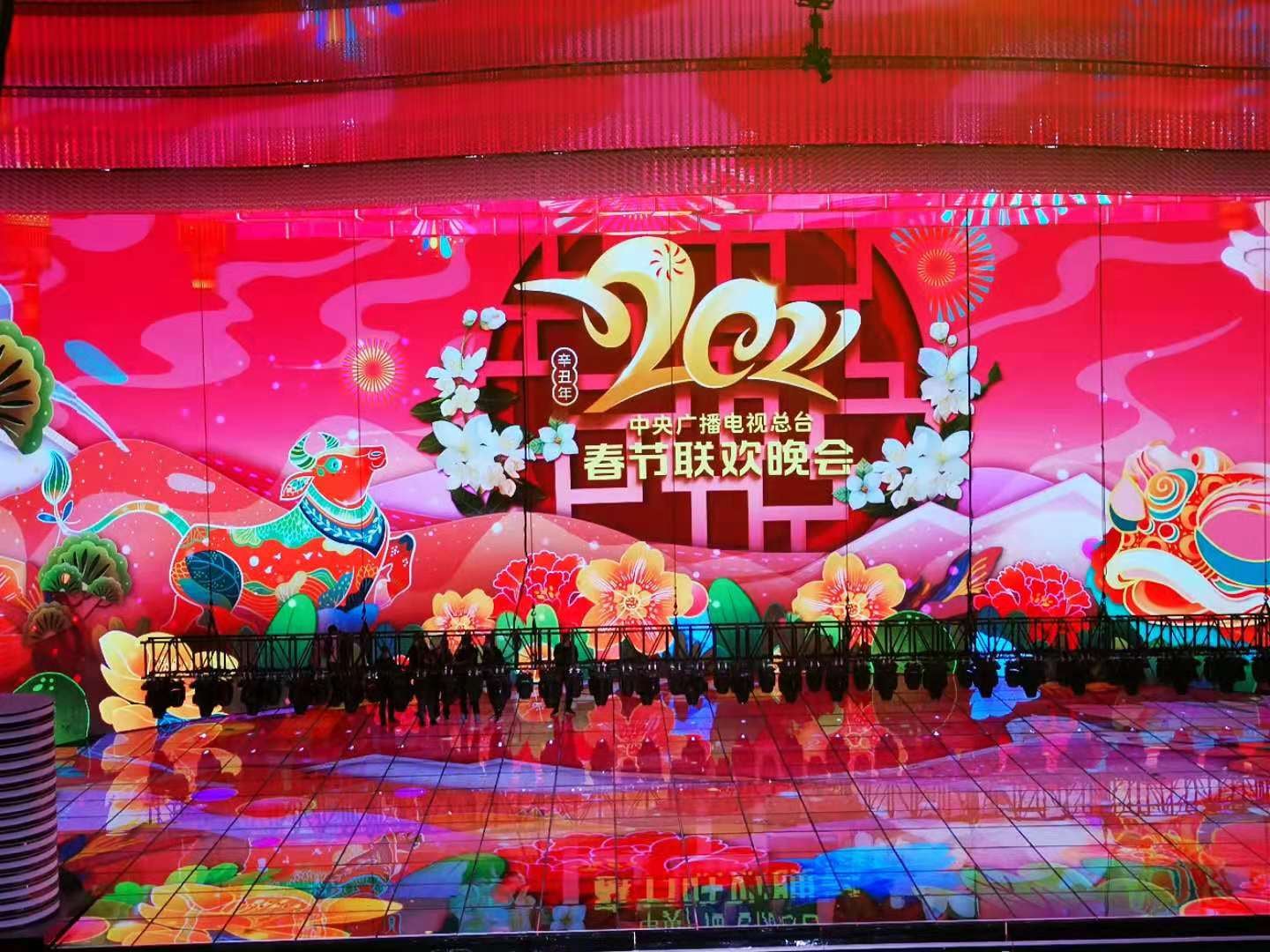

Our case

HD Indoor panel P4 SMD2121 512x512mm die casting aluminum cabinet rental full color led display screen for led video walHD Indoor panel P4 SMD2121 512x512mm die casting aluminum cabinet rental full color led display screen for led video wal

♦ Production process:

1) Incoming Inspection→2) SMD→3) Plug-in

→4) Wave Soldering→5) After Welding→6) Testing

→7) Semi Finished Aging→8) Module Assembly

→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing

♦ Packaging and shipping

Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.

♦ Why choose us:

Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.

Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.

* Payment term: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
* Lead time: Normally in 15~18 days after receiving your advance payment. The specific delivery time depends on the items and quantity of your order.
* Sample policy:
1) We can produce by your samples or technical drawings. We can build the molds and fixtures.
2) We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
* Shipping port: Shenzhen, China
* Discounts: We offer discount for big quantity.
